2x IBC / 8x Drum Storage Cabinet Steel Sump - DPU8-2

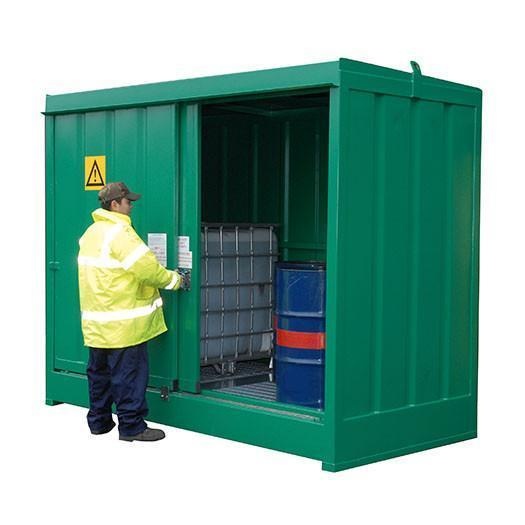

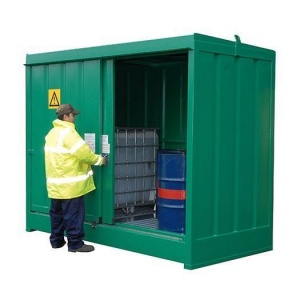

This bunded cabinet is designed to hold 2 IBCs or 8 drums on 2 pallets, pallet size up to 1.2m square. The base sump is seam welded from 3mm sheet steel with a capacity of 1125 litres. Each IBC or pallet sits on 3 load bearing channels. The body is formed from 2mm pressed sheet steel and benefits from a fully welded strong design. The 2 easy glide sliding doors are fabricated from 2mm sheet steel and fitted with a robust centre lock with keyed handle to make the bunded container secure.

The IBC sump container complies with all current UK regulations for the safe storage of IBCs and drums. The steel sump offers a sturdy alternative to plastic sumps.

Available as optional extras are:
- Air vents

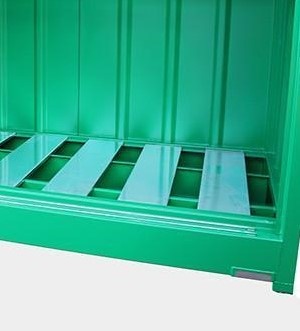

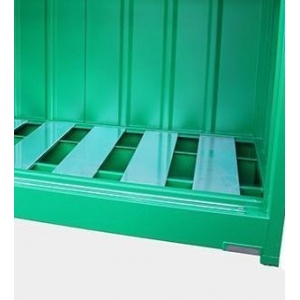

- Galvanized steel grid mesh so pallet not needed (as shown in pic)
- Galvanized steel pallet channels

These drum sump cabinets are built to order and these options (or any other requirement) can be incorporated during manufacture of the cabinets. Typical lead time is about 3 weeks.. Please contact us with your requirements for more details.

The paint spec is a high build, quick drying primer/topcoat paint specifically designed for use directly on to metal or bare steel This paint contains zinc phosphate anti-corrosive pigments and is applied with a minimum dry film thickness of 75 microns.
If you require any additional information or technical details regarding this drum sump cabinet please contact us as our staff are at your full disposal.



IBC bunded storage cabinet with sump
Model DPU8-2
External Dimensions L2706mm x W1410mm
Max O/A Height 2350mm
Door Aperture (each side) W1295mm x H1795mm
Storage Capacity 2 IBCs or 8 x 205 litre drums
Sump Capacity 1125 Litres
Net Weight 1050 Kg
Colour as Standard Green RAL6029
