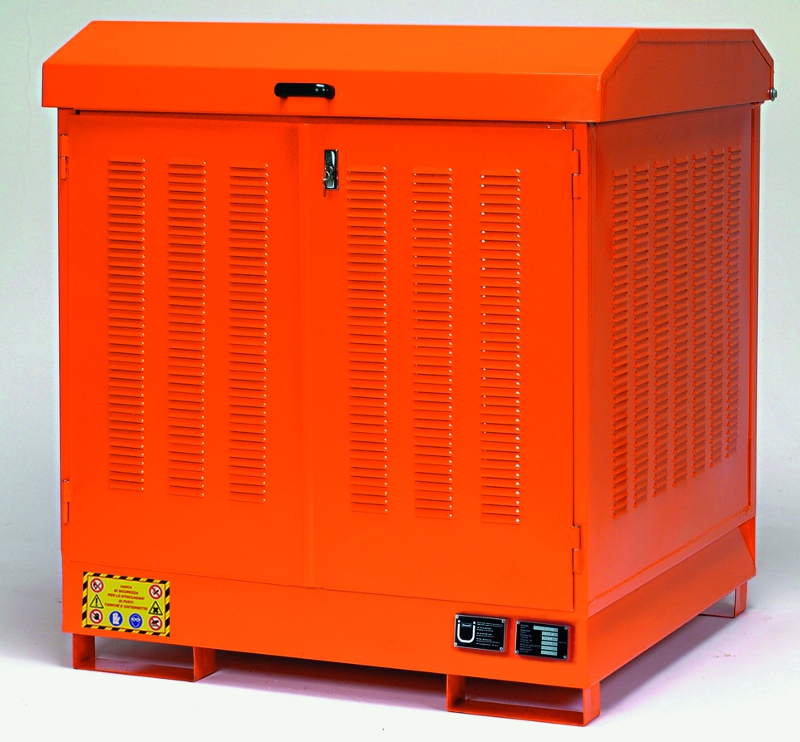

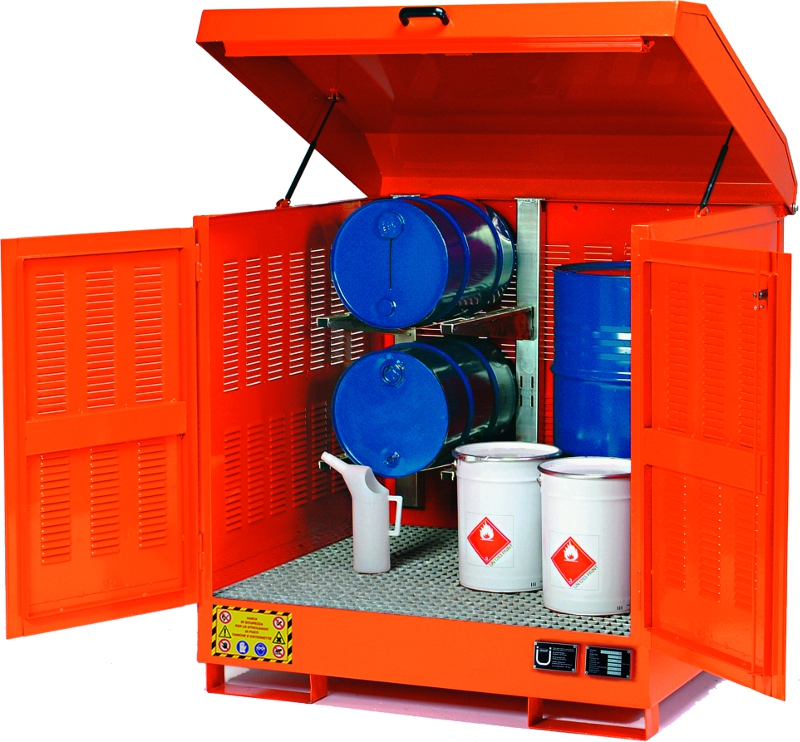

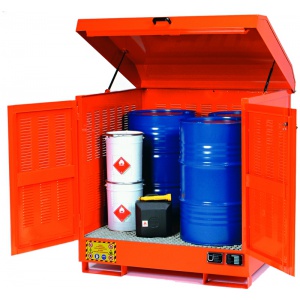

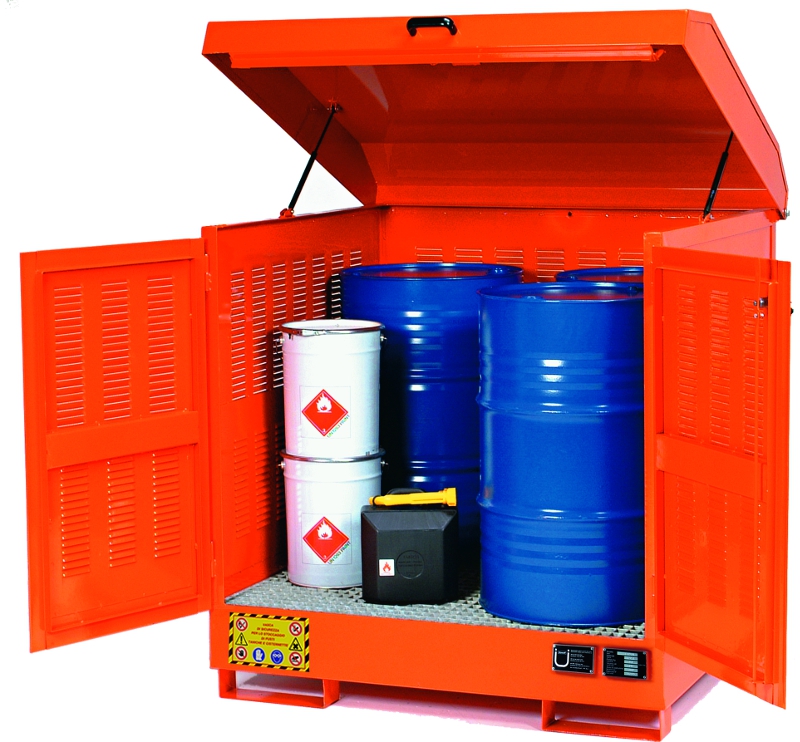

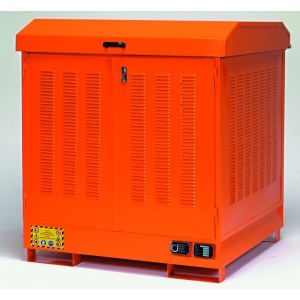

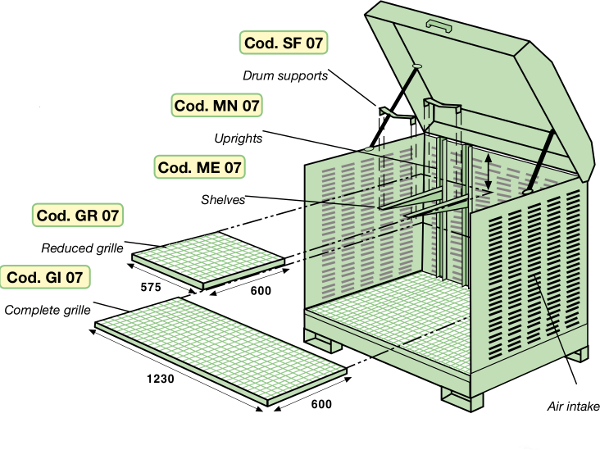

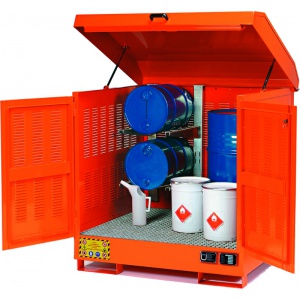

Cabinets With Containment Sump For Drums Features ISO Standards These are high quality steel cabinets with vented sides for the safe storage of drums and small containers of hazardous or flammable materials. The range includes models with two and four drum capacities. The collection tank is made from galvanized sheet steel and certified fully watertight. This cabinet is especially suitable for flammable substances because of the louvred vented sides which allow excellent air flow for ventilation. The cabinet is suitable for outside use. The cover is sheet steel and is operated by gas shock absorbers which allows easy opening and closing. This is quality gear and unashamedly commands a pretty price. The cabinet comes in 2 drum and 4 drum capacity models. Note that pictured is the 4 drum model ECO714. The collection tank is constructed from galvanized sheet metal with a removable galvanized grid and conforms to the highest level of certification and is supplied with a warning panel and identification plate fitted to the sump. We supply a range of accessories that can be fitted to these cabinets so that they precisely meet your storage requirements. Using upright, shelf brackets can then be fitted. Then either horizontal drum supports or grid shelves can be attached, eifther full or half width. Contact us regarding these options if you need any help. If you require any additional information or technical details regarding this product please contact us as our staff are at your full disposal. Delivery is FREE to mainland UK, excluding Northern Ireland, Scottish Highlands and Islands. Please call for a delivery price to these regions. Prices do not include VAT. Products not in stock have a 4 week lead time. UNI ISO 3834-3: 2006 Each containment spill pallet is subjected to non-destructive testing to ensure the basin is watertight in case of spills. This process is applied according to the following standards. UN EN ISO 9712: 2012 Non-destructive testing Qualification and certification of personnel involved in non-destructive testing UNI ISO 3452-1: 2013 Non-destructive testing Penetrating liquids examination - Part 1 General principles UNI EN 13018: 2004 Non-destructive testing Visual inspection - General principles UNI EN ISO 23277: 2010 Non-destructive welding test Welding test using penetrating liquids - Levels of acceptability UNI EN ISO 5817: 2014 Welding Welded joints for cast steel, nickel, titanium and their alloys excluding energy beam welding - Quality imperfection levels Optional shelf and drum brackets diagram Steel Cabinet for Drums ProductDimensions in mmCapacity ABCD ECO712 1350 860 1570 1080 2 x 200 L drums ECO714 1350 1260 1540 1080 4 x 200 L drums Capacity of optional shelves 150 Kg.
